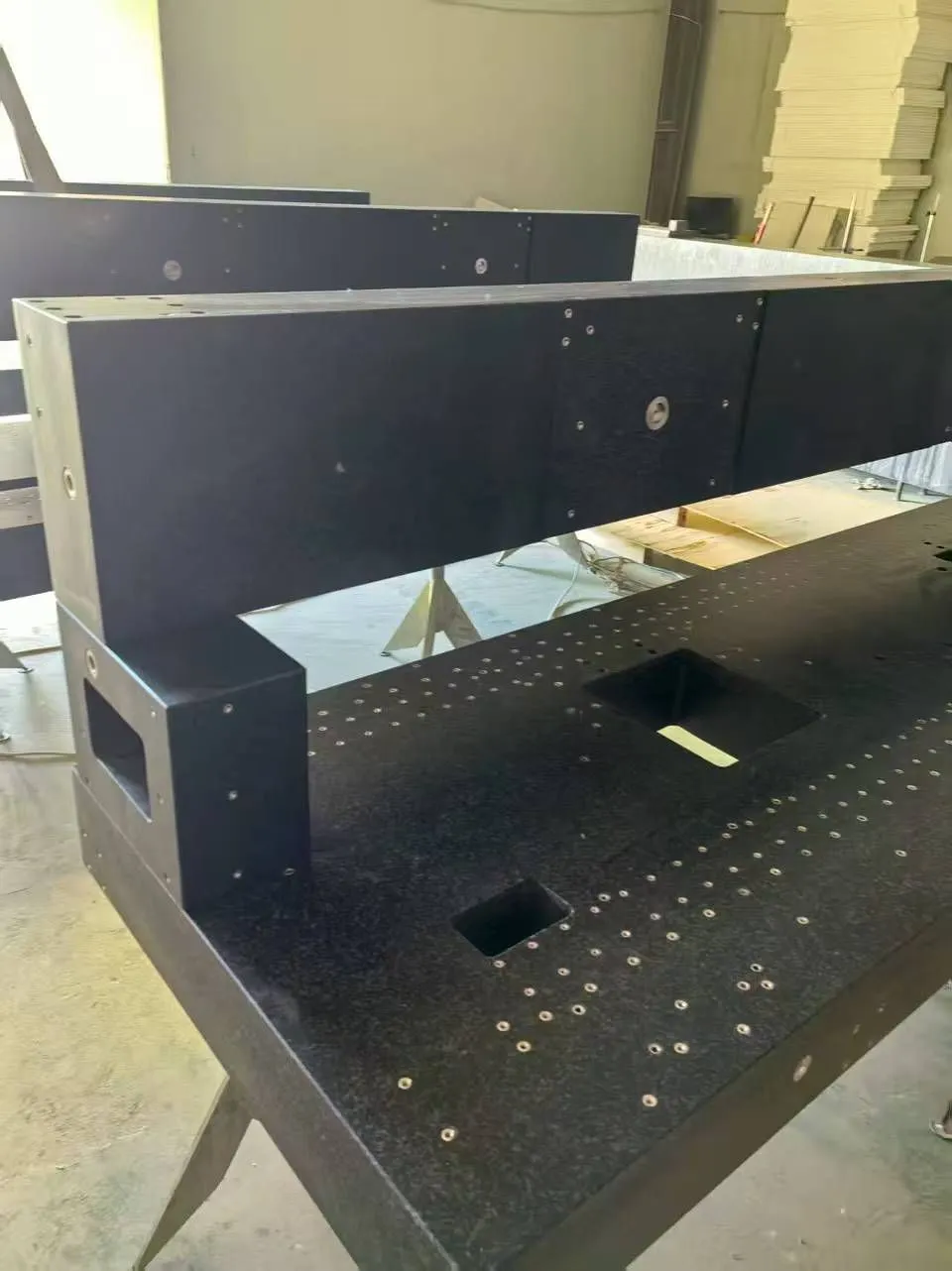

A marble platform for semiconductor production

Specialized Marble Platform for Semiconductors (Core: High Stability Anti-static Nanometer Precision)Marble platforms for semiconductors (mostly natural granite / Jinan Green) serve as the core bases for lithography machines, wafer inspection, die bonding / dispensing, and etching / deposition, responsible for “locking in” precision and stability in nanometer-scale processes.

I. Core Materials (Semiconductor Grade)
Material: Jinan Green / Black Granitepreferred), dense structure, porosity <0.5%, internal stress completely released.
Key Physical Properties:
Coefficient of Thermal Expansion: ≤ 4.5 × 1⁻⁶/℃ (about 1/20 of steel), 24h constant temperature deformation <0.5 μm/m.
Flatness: Grade 0 / Grade 000 (≤ 2 μm/m), nanometer-scale reference surface.
Hardness: Mohs scale 6–7, resistant repeated contact with probes / cutting tools, wear-resistant and scratch-resistant.
Anti-static: Surface resistance 10⁶–10¹¹ Ω, no static, no damage to wafers / chips.
Vibration Isolation: High damping, can attenuate **90% ** of external micro-vibrations (0.1–10 Hz).

II. Typical Structures (Specialized for Semiconductors)
Base Platform (Solid / Honeycomb)
Solid: Thickness 150–300 mm suitable for heavy bases of lithography and etching machines.
Honeycomb: Lightweight (40% weight reduction), suitable for high-speed motion platforms (e.g., wafer stages
Air Bearing / Linear Motor Motion Platform
Air Bearing Guide: Micron-level air film suspension, zero friction, no wear, positioning accuracy ±50 nm.
Linear: Direct drive, speed up to 2 m/s, repeatability ±1 μm.
Vibration Isolation Base (Mandatory)
Passive: Natural rubber / air, isolating low-frequency vibrations (e.g., ground, fans).
Active: Electromagnetic / piezoelectric vibration isolation, real-time cancellation of 1–1000 micro-vibrations, standard for lithography machines.
Interfaces and Protection
Precision threads / positioning pin holes (±1 μm), adapted for equipment installation.
Surface-polishing anti-static coating, dust-free, resistant to chemical corrosion (photoresist / acids and bases).

III. Core Application Scenarios (202 Mainstream)
Lithography Machines: Mask stage / workpiece stage base, nanometer-level positioning, thermal deformation <0.1 μm/h.
Wafer Inspection Surface defect / thickness / flatness inspection, anti-static, scratch-free, accuracy ≤ 0.5 μm.
Die Bonding / Dispensing: Micro-manipulation, ±1 μm positioning, stable die bonding / dispensing, yield improvement of 3% .
Etching / Deposition: Equipment base, low thermal expansion, ensuring nan-level linewidth stability.
Coordinate Measuring Machine (CMM): Reference platform, 24h continuous measurement error ≤ 1.9 μm L/30.

IV. Key Indicators for Semiconductor Grade (Acceptance Standards)
Table
Item Semiconductor Grade (Grade 000) General Industrial Grade (Grade )
Flatness ≤ 1 μm/m ≤ 10 μm/m
Perpendicularity ≤ 2 μm/m ≤ 20m/m
Surface Roughness Ra ≤ 0.05 μm Ra ≤ 0.8 μm
Anti-static Value 10⁶–0¹¹ Ω No requirement
Thermal Deformation (24h) ≤ 0.5 μm/m ≤ 5 μm/m

V. and Production Requirements
Constant Temperature Workshop: 22 ± 0.5 ℃, humidity 40%–60%, dust-free Class 1000 ( 7).
Processing Equipment: Large CNC precision grinding machines, micron-level processing, full-process temperature control.
Inspection: Laser interferometer, optical flat, roughness tester, full inspection traceability.

VI. Selection Key Points
Material: Prioritize Jinan Blue (best stability), avoid light-colored marble (high impurities, significant deformation).
Precision Semiconductor front-end (lithography / etching) select 000 grade; packaging / testing select 00 grade.
Structure: Heavy-duty equipment use solid thick; high-speed motion use honeycomb air float.
Vibration Isolation: Lithography machines / high-end testing must be equipped with active vibration isolation; general equipment use passive isolation.
